Nail Strip 16 ga. X 12 Stock #
00104
Nail Strip 16 ga. X 18 Stock # 00064
Nail Strip 16 ga. X 24 Stock # 00051
Nail Strip 16 ga. X 36 Stock # 001052
Nail Strip 16 ga. X 48 Stock # 00052
Nail Strip 18 ga. X 12 Stock # 00106
Nail Strip 18 ga. X 18 Stock # 00059
Nail Strip 18 ga. X 24 Stock # 00095
Nail Strip 18 ga. X 36 Stock # 00107
Nail Strip 18 ga. X 48 Stock # 00108
Qty 25 per package |
These nail plates are used as FHA
plates, return air kick plates, or general use brackets. The
repetitive hole pattern in these brackets allow for nailing
to studs of various spacings. The nail strips are available
in 16 or 18 gauge material and in any increment of 6 length. |
|
 |

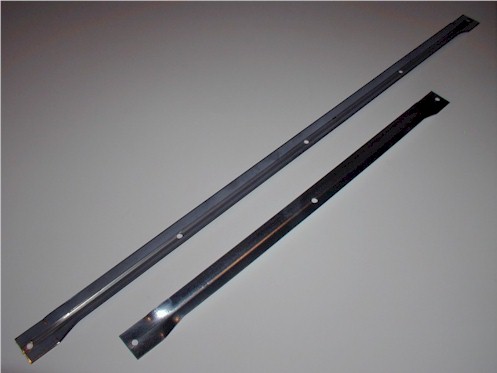

15 1/2 Wedge Hanger. 20 ga. Stock
# 00096
23 3/4 Wedge Hanger. 16 ga. Stock # 00097
Qty 50 per pkg |
No tool required for this hanger!
The Wedge hangers V channel provides the strength necessary
to hold up rigid or flexible round ducting between floor joists.
Simply drive the sharp straightened edges into the joist. If
desired, use pilot holes to screw the hanger to the joist for
additional stability. |
|
|
|

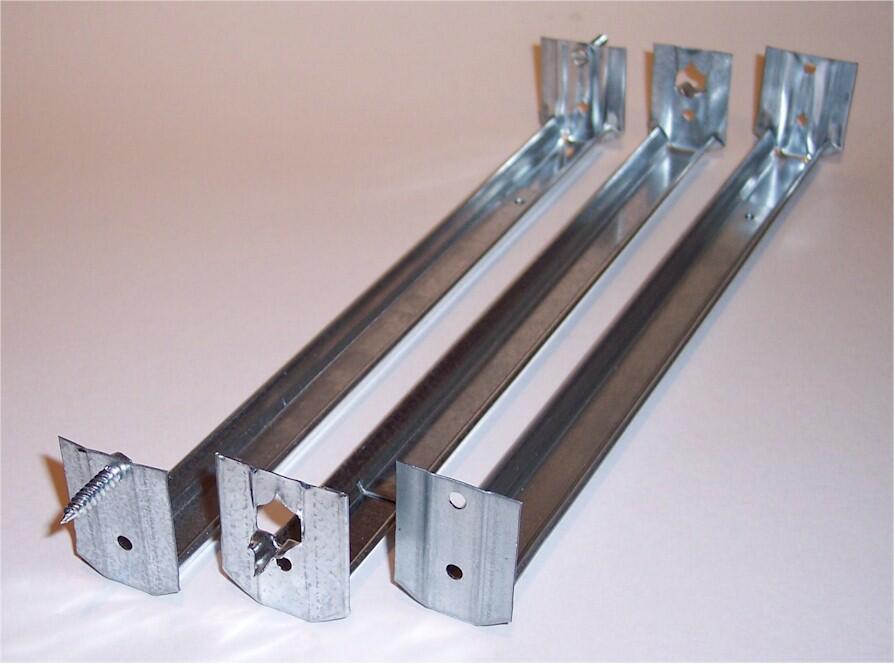

Universal pound-in I hanger (11-19)
Stock # 00134
Universal Tabbed I Hanger (11-19)
Stock # 00055
Universal I Hanger (11-19) with captivated screw.
Stock # 00065
Universal pound-in I hanger (18-33)
Stock # 00135
Universal Tabbed I Hanger (18-33)
Stock # 00056
Universal I Hanger (18-33) with captivated screw.
Stock # 00066 |

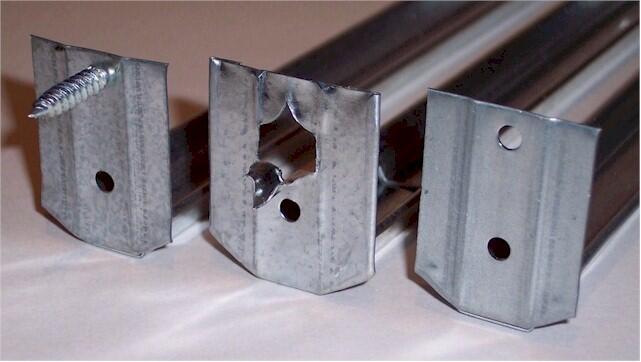

Universal I Hangers telescoping
design allows for one single hanger to support the majority
of your ducting needs. Roll formed channels provide needed strength.
Hammer in The Pounder for quick installation into most softer
truss systems. When needing additional support or when installing
into the harder I joists, use either tabbed versions. For
the ultimate in convenience, choose the Universal I Hanger
with the captivated screws. No more fumbling around for screws
while balancing a flue, ladder, and screw gun. Sure to be a
time saver and an enhancement to safety. |
|
 |

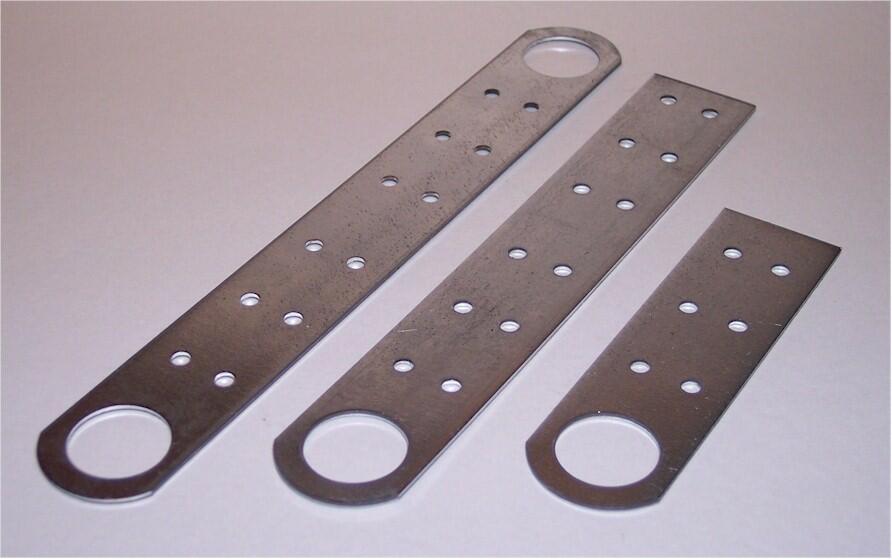

Single gas pipe hanger 1 x 4.
7/8 diameter hole.
Stock # 00053
Single long gas pipe hanger 1 x 7 1/2. 7/8 diameter hole.
Stock # 00150
Twin gas pipe hanger 1 x 8. Two 7/8 diameter holes.
Stock # 00054
Qty 250 per box |
The gas pipe hanger is attached
to the top of the furnace and hangs over the side to stabilize
the gas manifold. Extend the twin hanger across the corner of
the furnace to stabilize two lines, or use it as a longer version
of the single hanger. |
|
 |

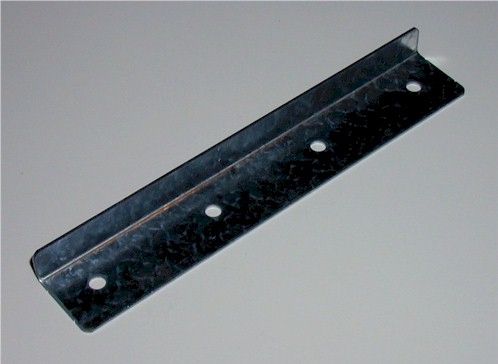

Minnie Duct Hanger. Stock # 00027
Qty 1000 per box |
L shaped hanger measures 3 x
1 x ½. Scribe mark at 1 to assist in installing duct
with precise clearances. A great money saving alternative to
longer more cumbersome hangers. |
|
 |
Square duct
hangers
8" - Stock # 00151
9" - Stock # 00152
10" - Stock # 00153
11" - Stock # 00154 |
8", 9", 10" and
11" lengths
3/4" wide
18 gauge |
|
 |

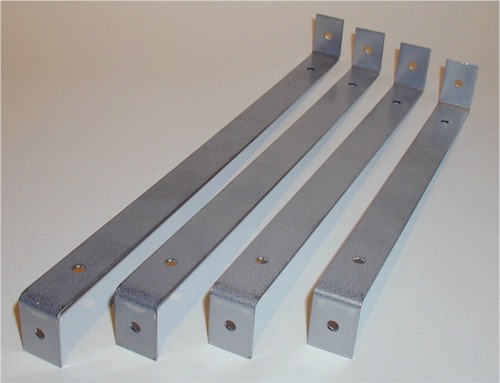

Furnace Leg. Stock # 00026
Qty 250 per box |
This 16 ga. Leg is seven inches
long and attached to each corner of the furnace to elevate the
furnace off the floor. Legs can be attached at different heights
to allow for unevenness of the floor. No more carrying around
bricks to elevate the furnace! The furnace leg provides for
a clean professional looking installation. |
|
 |

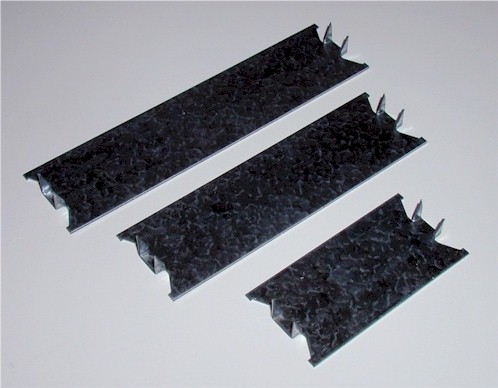

Stud Guard 18 ga. (1 ½
x 3) Stock # 00069
Stud Guard 18 ga. (1 ½ x 5) Stock # 00070
Stud Guard 18 ga. (1 ½ x 6) Stock # 00071
Stud Guard 16 ga. (1 ½ x 3) Stock # 00072
Stud Guard 16 ga. (1 ½ x 5) Stock # 00073
Stud Guard 16 ga. (1 ½ x 6) Stock # 00074
Qty 100 per box |
Universal Formation stud guards
are 1 ½ inches wide, are available in lengths of 3,5,
and 6 inches, and can be constructed from 16 or 18 ga. material. |
|
 |

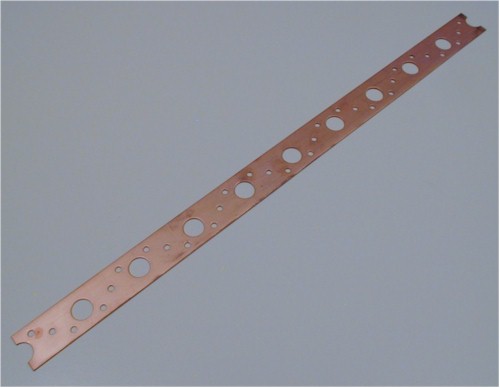

Plumbing Support Hanger. 16 ga.
Copper platted. (1 ¼ x 20) for use with ½
pipe.
Stock # 00086
Qty 25 per package |
The Universal Formations Plumbing
Support Hanger is 1 ¼ X 20 long. It is 16 ga. Copper
plated material designed for use with ½ copper pipe.
The repetitive hole pattern allows for various stud locations.
Repetitive hole location also allows this hanger to be field
cut to get two hangers out of one. |
|
